Vertex BD – Building Design Software

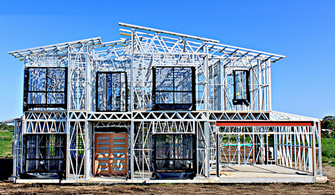

Stallion Steel Framers are seamlessly integrated with Vertex BD - An Advanced Building Design software application suitable for Designing Medium to Large Size Residential and Commercial Cold Formed Steel Structures.

  • Easily Customizable Framing Generator

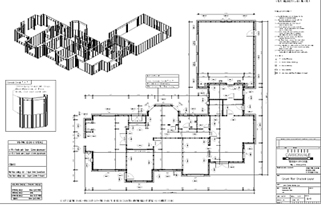

  • Automated generation of Production Drawings, Cutting List, Piece Labels, complete with Dimensions

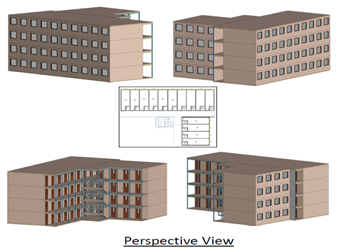

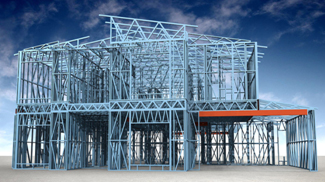

  • 2D and 3d Model and Framing views
  • Walk Through Videos
  • Huge Library of Walls, Floors, Roofs, Ceilings, Doors, Windows, Trims, Details and more.
  • Avoids Repetitive work, Saves Huge amount of Design time with a Single Click

Vertex BD is a BIM Software with easy integration saving a lot of Design Time.

  • Complicated Structures, Curved Structures, Hybrid Structures can be designed Easily
  • Online access available for numerable Tutorial Videos, How-to-Articles and other Educational Resources
  • Vertex Truss Engineering provides full engineering to roof trusses and floor trusses.
  • Vertex structural models can be exported to third party engineering software in STAAD or IFC Format.
  • FEA tools available for General Engineering including Analysis Report for the Model. Available for Cold-Formed Steel Framing. Includes AS/NSZ Standards, Eurocode and Chinese Standards.
  • Available with 2 Options – Vertex BD Framer and Vertex BD Pro
